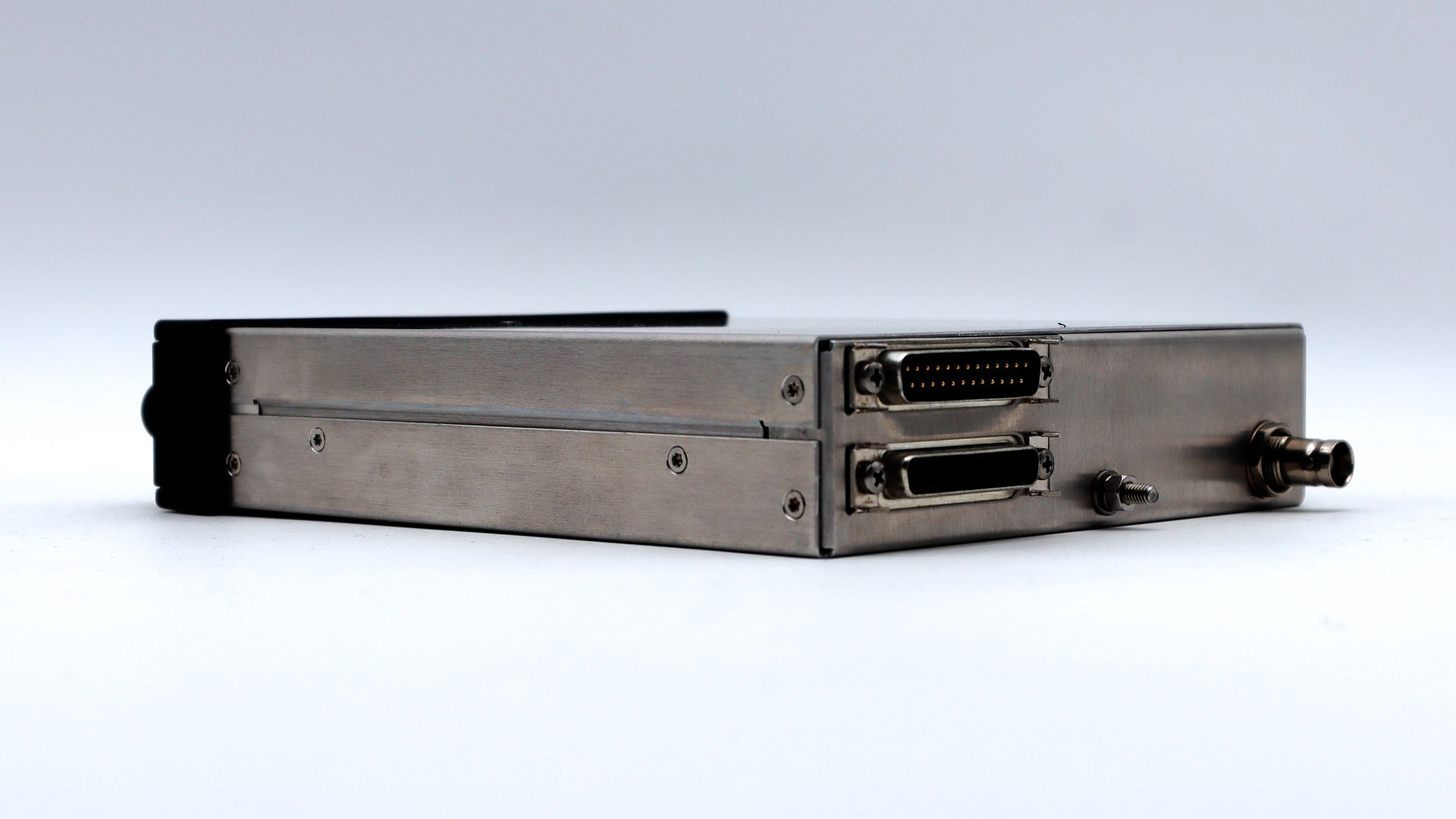

AR6203 VHF Transceiver

Communication / ATM / Business & Commercial Aviation / Fixed-Wing Aircraft & Helicopters

The AR/RT620X VHF transceivers are a family of high-quality aircraft radios optimized by their functionalities, state-of-the-art technology, compact dimensions, and low weight for many different aircraft categories in the general aviation community. Market leader for their reliability, the products follow the highest manufacturing and testing standards in the Light & Sport Aviation segment.

The panel mount models are equipped with sunlight readable LC displays, and all variants provide high-performance transmitters with either 6 or 10W power output, continuous power supply from 10.25 to 33 V DC, 8.33 kHz / 25 kHz channel spacing, sensitive receiver, VOX intercom, and many other features. The front panels enhance user safety with the automatic safe-lock system, avoiding improper or unwanted handling.

The AR/RT620X radio family supports a 4-place VOX-controlled intercom, separated PTT keys, and tandem capable connection with the RCU6201 panel-mount remote controller for dual-panel operation. The VHF transceiver also contains a channel memory function for automatic/manual frequency storage. The last 9 used (active) frequencies are always stored automatically.

To support a variety of different installation requirements, the 620X products are available in the following formats:

  • AR6201: 2 ¼ format, easy installation in cockpit panels using only 4 screws.

  • RT6201: split variant of the AR6201, controlled with the RCU6201 compact control unit (2 ¼ inch format). The RT6201 can thereby be installed with the dedicated mounting close to the antenna.

  • AR6203: 160mm width for panel installation with the dedicated mounting.

Reputed for their world-class reliability and premium manufacturing quality, all AR/RT620X radios are supplied with a 5-year standard warranty package.

With user-centric front panels optimized for pilot safety, the AR6201, AR6203, and RT6201 VHF transceivers are market leaders for their unrivaled reliability. Available in panel mount or remote-controlled versions for more installation flexibility.

  • Compact and lightweight.

    Sunlight-readable display.

    Robust and maintenance-free design.

    No forced cooling or ventilation slots.

    Market-leading durability.

    RF signal indicator in the display.

    Dual watch function using SCAN Mode for monitoring a second frequency.

    Tandem Operation.

    VOX-controlled intercom.

    Separate PTT for pilot and co-pilot.

    Audio Auxiliary input.

    5-year warranty

  • Channel Spacing: 8.33kHz to 25kHz

    Power Output: 6W or 10W.

    4-place intercom.

    2 separate intercom circuits.

  • EASA certified.

    FCC approved for 25kHz versions.

DOWNLOADS

Interested in this product?

For more information regarding this product and purchasing options, please contact the Becker Avionics, Inc sales team.
