DVCS6500 Digital Voice Communication System

Intercom / Business & Commercial Aviation / Fixed-Wing Aircraft / Helicopters

The DVCS6500 intercom family is a leap ahead in technology and capability which is designed for rotary and fixed-wing aircraft. The system was created by combining the customers need for cost efficiency, lightweight, reliability, low power consumption and limited space available in modern aircraft.

A modular and decentralized system design has been implemented to allow a maximum flexibility and scalability. The new flexibility of the DVCS6500 allows to program the functions and the HMI to cover all the needs in the mission and aircraft configuration.

AMU6510 - Audio Management Unit

The AMU6500/6510 is the combination of the control unit and system architecture in a single-block unit. It can be operated as a standalone digital audio management unit or as part of a mission tailored system in combination of the hardware from the DVCS6500 family. Due to the single-block design, all interfaces are in one place. But even in larger systems, the cabling effort is reduced, as all interfaces in the DVCS6500 system are available throughout the system via the digital audio bus from Becker Avionics.

ARU6510 - Audio Remote Unit

At some occasions, even the most compact construction size is still too large and heavy scale for a panel installation. Therefore, the Becker Avionics ARU6510 audio remote unit has been designed in a distant position like the electronic bay. The ARU6510 can be controlled by ACU6510 audio units or can be connected to a glass cockpit.

ACU6510 - Audio Control Unit

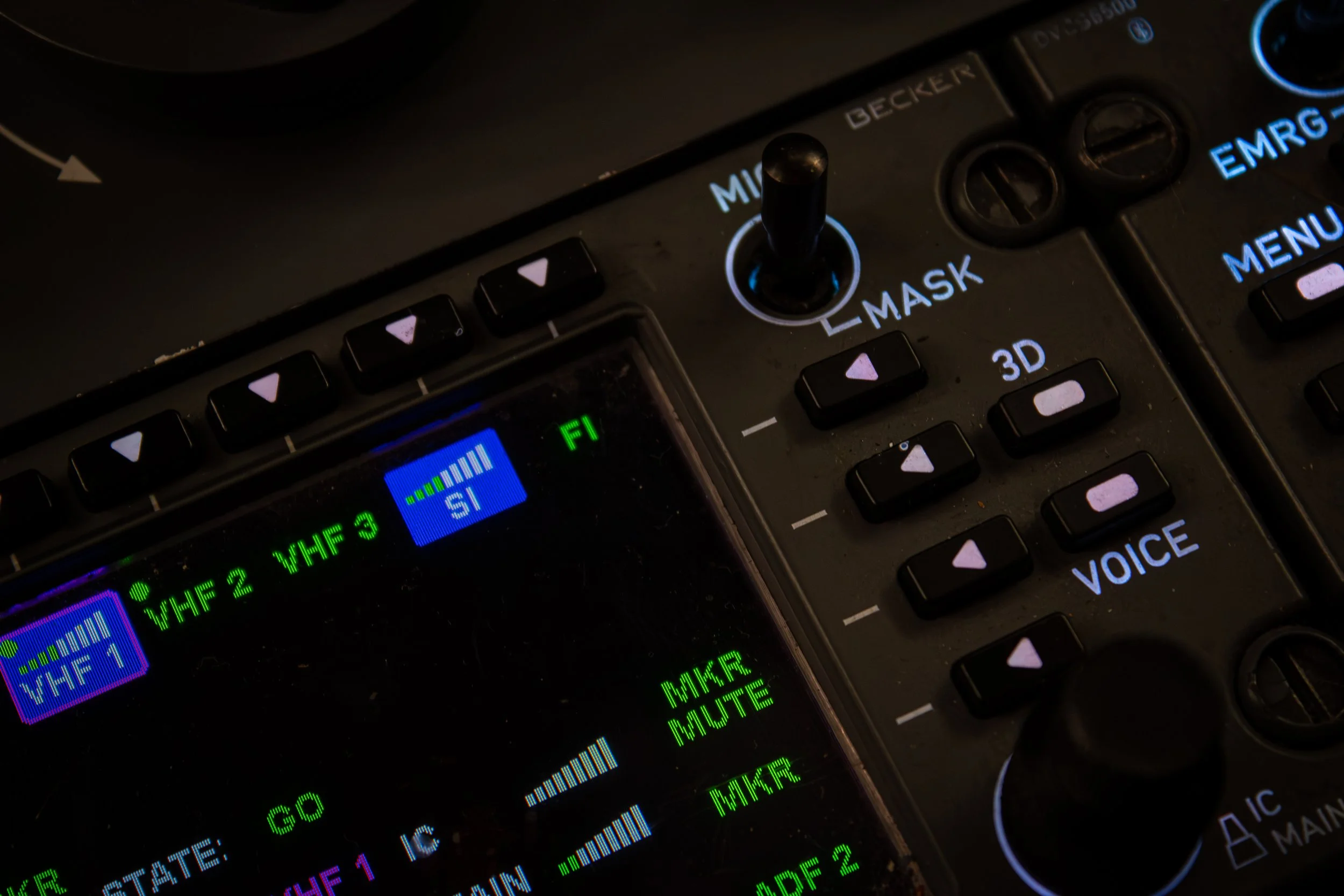

The ACU6510 is the operating panel for the DVCS6500 system. With the integration of the ACU6510 in the DVCS6500 system, it is possible to provide an individual control panel to all 12 potential users in the system. The ACU6510 is designed to minimize the panel space required in the cockpit or mission control desk to optimize the installation when space and weight is critical.

  • AMU6510 Audio Management Unit

    ARU6510 Audio Remote Unit

    ACU6510 Audio Control Unit

  • Single or up to 12 operators (9 of which can be full stereo) to manage up to 12 transceivers and 21 additional audio inputs.

    Individual volume control of each transceiver and receive only station while allowing each operator to select a VOX or PTT setting for internal aircraft communications.

    Bluetooth connection to allow handheld portable radios or cell phones to be directly connected.

    Cockpit voice recorder capability.

    Audio recording with playback capability.

    True 3D audio system allows a full audio immersion experience for increased safety and situational awareness.

    Customizable by the customer using a combination of DVCS6500 hardware family to design the perfect system for their individual mission.

  • Certified SelCal
