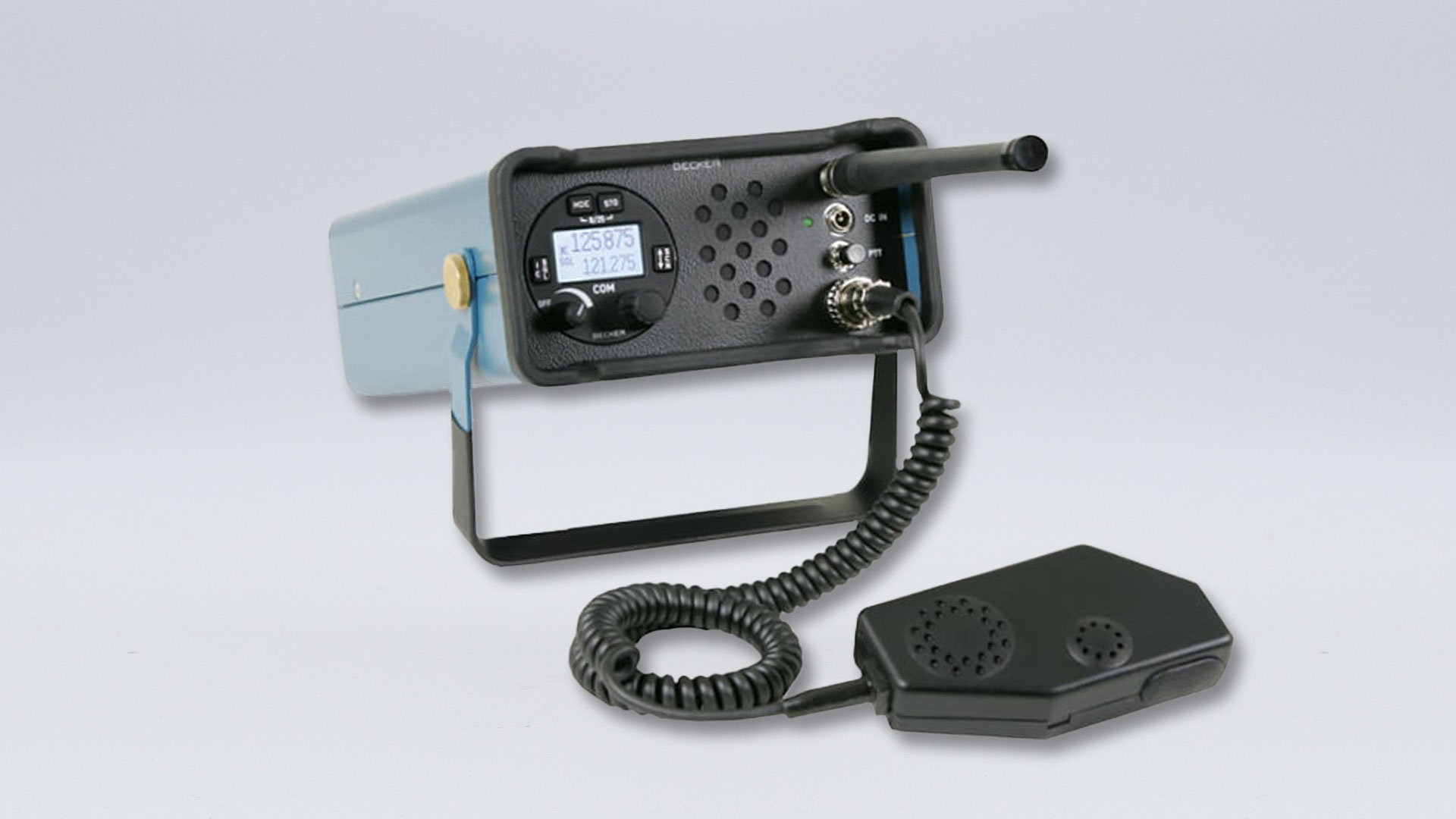

GK615 & GK616 Portable VHF Stations

Air Traffic Management / Communications / Ground to Air Communication / Portable

Designed for operations at airfields and airports in a very demanding environment, the GK615 and GK616 portable VHF stations offer the latest technology and support all frequency channels in the aeronautical frequency range, adjustable in 25 kHz and 8,33 kHz steps. The user-friendly operator menu and extensive setup possibilities allow the user to have a very personal setup. The large, clear, and dazzle-free LC display shows the active frequency, standby frequency, or memory channel.

With an output power of 6W or 10W, the transmitter is strong enough for medium-range communications, ensuring a low cost of ownership for the customer. The robust aluminum case includes dry–lead–acid battery technology and charging can be easily accessed via a socket located on the front panel.

The GK615 and GK616 transceivers are also available with an EASA/FAA-certified aircraft radio, ideally suited for hot air balloons or emergency aircraft radios.

Air traffic services require efficient, reliable, & user-friendly communication equipment. Our radio communications solutions are meant to be flexible and scalable, assembled with quality-proven components, engineered with state-of-the-art technology, and driven by a customer-centric philosophy.

  • Selectable and adjustable squelch levels.

    Parameter setting via user menu.

    9 free editable memory channels.

    Non-volatile memory.

    Emergency mode.

    4 fully configurable audio outputs.

    Reduced size, low weight.

    No forced cooling or ventilation slots.

    Maintenance-free.

    User-friendly HMI.

    • Frequency range: 118,000 MHz-136,980 MHz.

    • Channel spacing: 25 kHz / 8.33 kHz, auto select.

    • Modulation type: AM, A3EJN.

    • AC-Power: 90 VAC (45 Hz ), 250 VAC (65 Hz).

    • DC-Power Ext: Nominal: 24 to 35 VDC, Range: 21 to 31 VDC.

    • RF Antenna connection: N-Connector female.

    • Warm up time: 5 seconds.

    • Duty cycle: RX/TX: 4 : 1.

    • Voice recorder output: -6 dBm, +3 / -12 dB @ 600 Ω, balanced.

    • Temp range: Operating -20°C to 55°C, Storage -55°C to 85°C.

    • Humidity: 48h, 50°C, 95% RH, without condensation.

    • Case Dimensions (WxDxH): 270 x 115 x 80 mm.

    • Weight: 3 kg.

  • Compliant with ETSI standards and type approved for ATM applications.

    Available with an EASA/FAA Certified transceiver for airborne usage.
