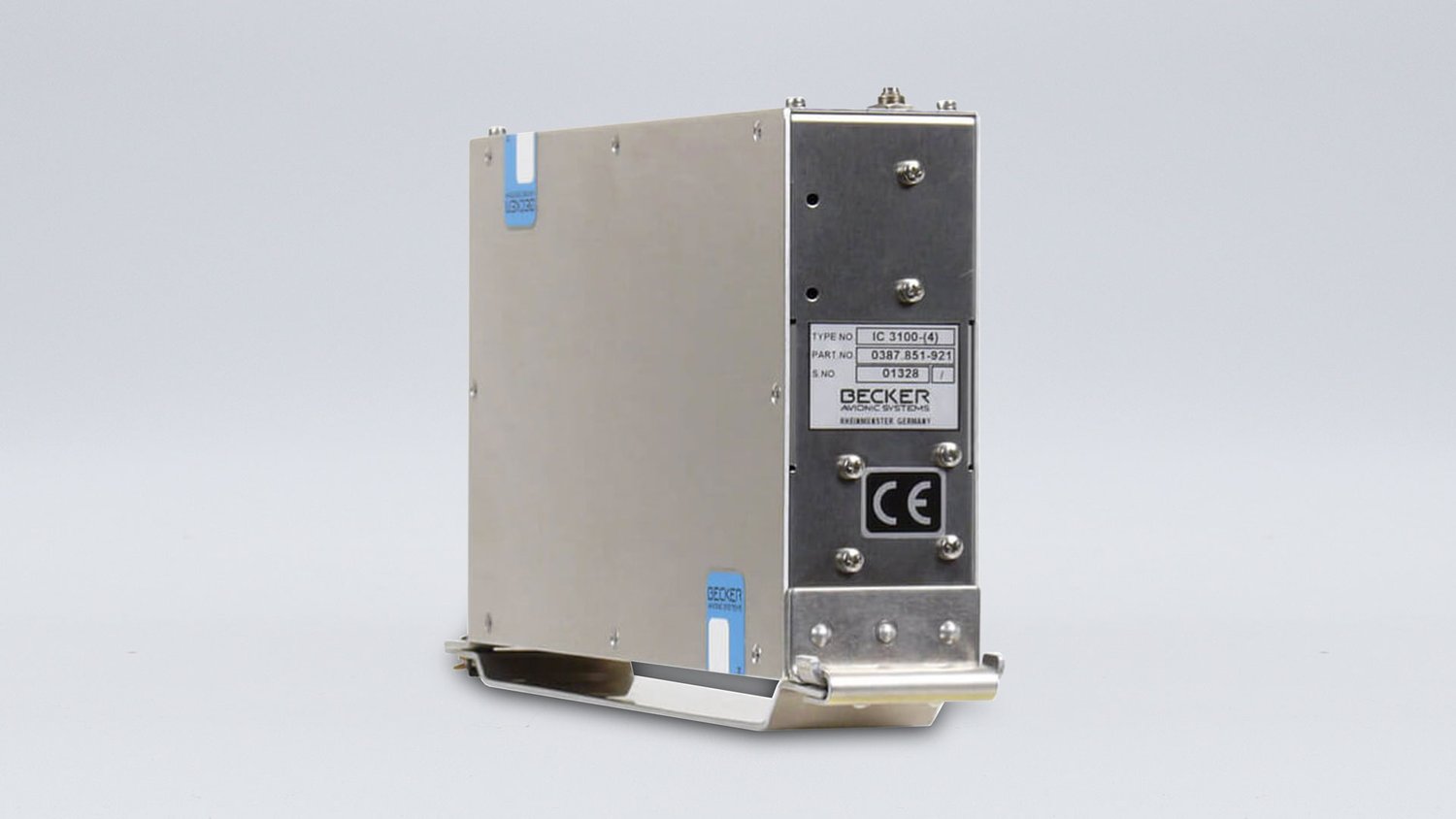

IC3100 Intercom Amplifier

Intercom / Business & Commercial Aviation / Fixed Wing / Helicopter

Completing an aircraft communication management system, the IC3100 amplifier is a robust self-contained unit optimized for high-noise conditions. It provides intercom connectivity between flight deck and passengers while supporting a wide range of different microphones and headsets.

Mission-specific concerns in aircraft installations need operational and customer-centric solutions. The IC3100 Intercom Amplifier is a smart way to enhance your aircraft communication management system. It is specially designed for intercom applications in aircraft with high noise conditions.

The IC3100 supports intercom capability in the cabin on the flight deck and between the passengers and pilot/co-pilot. The amplifier is equipped to connect up to six headsets in hot mike mode.

Designed as a mono-block device with a compact and smooth design, the IC3100 is well suited for installations in the avionics compartment of various types of aircraft.

  • Optimized for high-noise conditions.

    Cost-effective extension of intercom systems.

    Easy installation.

    Compact and robust design.

    No forced cooling or ventilation slots.

    Maintenance-free.

    Full support of dynamic and standard mikes and up to 6 passenger headsets.

    VOX controlled intercom (voice-controlled).

    Passenger isolate control.

    External volume control.

    Stereo functionality available.

  • Supply Voltage: 24.8...30.3 VDC.

    Altitude Capability: 50,000 ft.

    Operating Temperature: -20° … +55°C

    Dimensions: 245 x 45 x 128.5 mm

    Weight: 700 g
