RCU6201 Remote Control Unit (for RT6201 VHF Radio)

Communication / Fixed Wing / Helicopter

The 6200 series VHF transceivers are a family of high-quality radios. The 6200 series is optimized by their functionalities, state-of-the-art technology, the compact dimensions and the low weight for many different aircraft categories in the general aviation community.

The panel mount models are equipped with sunlight readable LCD displays. All variants provide high performance transmitters with either 6W or 10W power output, continuous power supply from 10.25 to 33 VDC, 8.33 / 25 kHz channel spacing, sensitive receiver, VOX intercom and many other features.

The 6200 series radio family supports 4-place, VOX-controlled intercom, separated PTT keys, tandem capable connection with the panel-mount remote controller (RCU) for dual-panel operation.

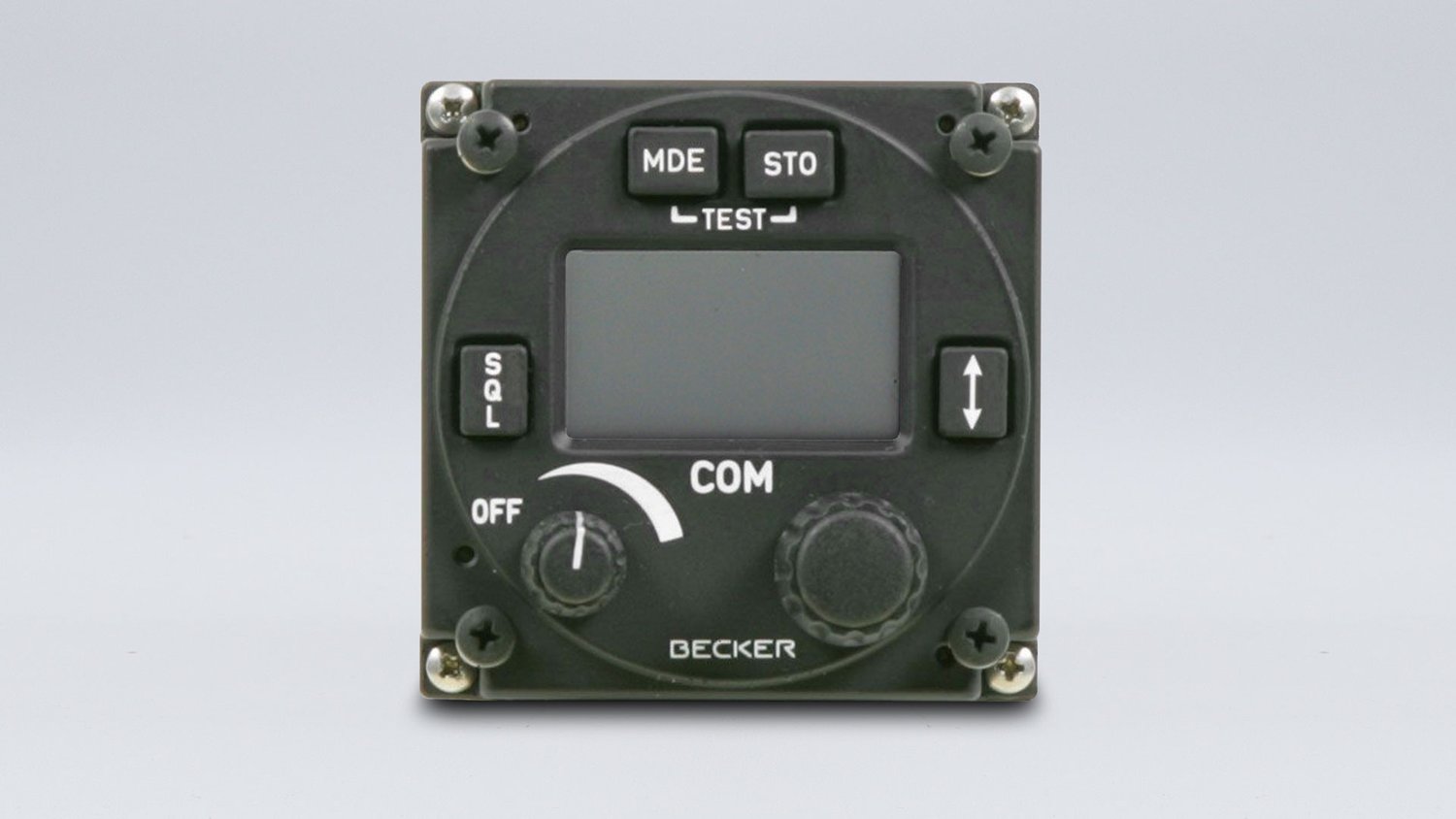

The RCU6201 Remote Control Unit is made to operate with the VHF transceivers of the RT6201 series. The primary function of RCU6201 is the HMI between users and VHF transceiver.

  • Low weight and reduced size.

    Sunlight readable display.

    Robust and maintenance-free design.

    No forced cooling or ventilation slots.

    Market-leading durability

    RF signal indicator in the display.

    Dual watch function ("SCAN Mode" for monitoring a second frequency).

    VOX-controlled intercom.

    4-place intercom.

    2 separate intercom circuits.

    Separate PTT for pilot and co-pilot.

    Audio auxiliary input.

    Tandem operation.

  • Supply Voltage: 10.25 to 33 VDC

    Output Power: 6W or 10W

    Frequency Range: 118.000 to 136.990 MHz

    Channel Spacing: 8.33 / 25 kHz

    Operating Altitude: 35,000 ft

    Weight: 200 kg

  • EASA Certificated

    TSO & FCC Approved
